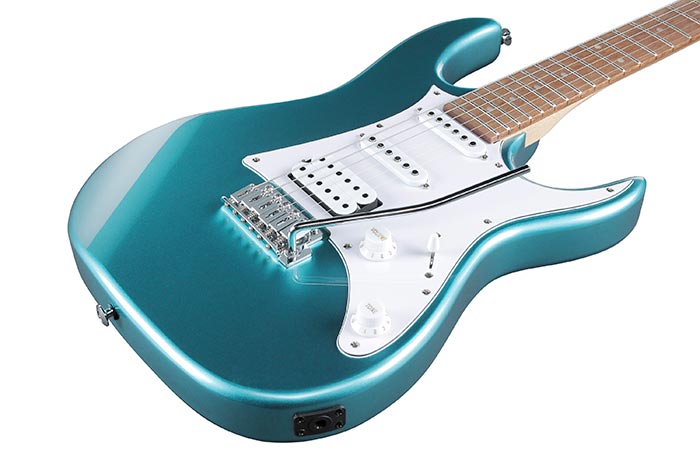

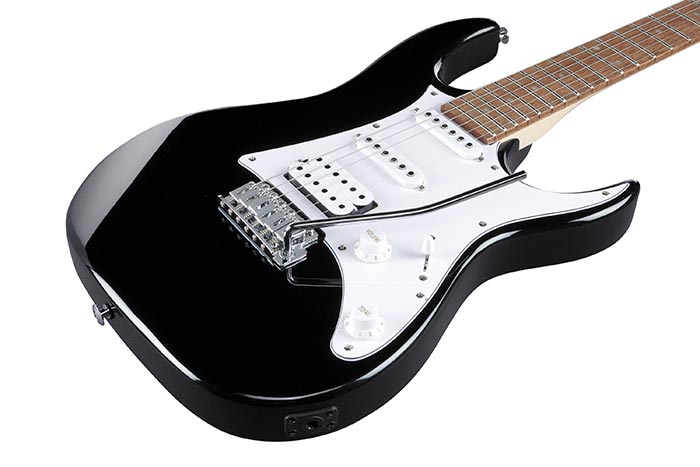

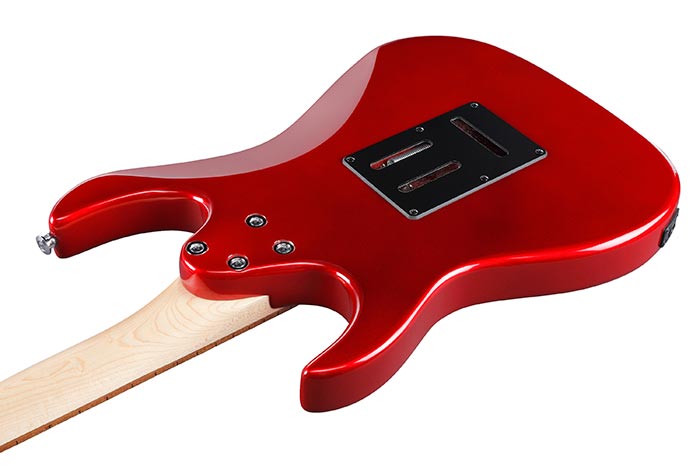

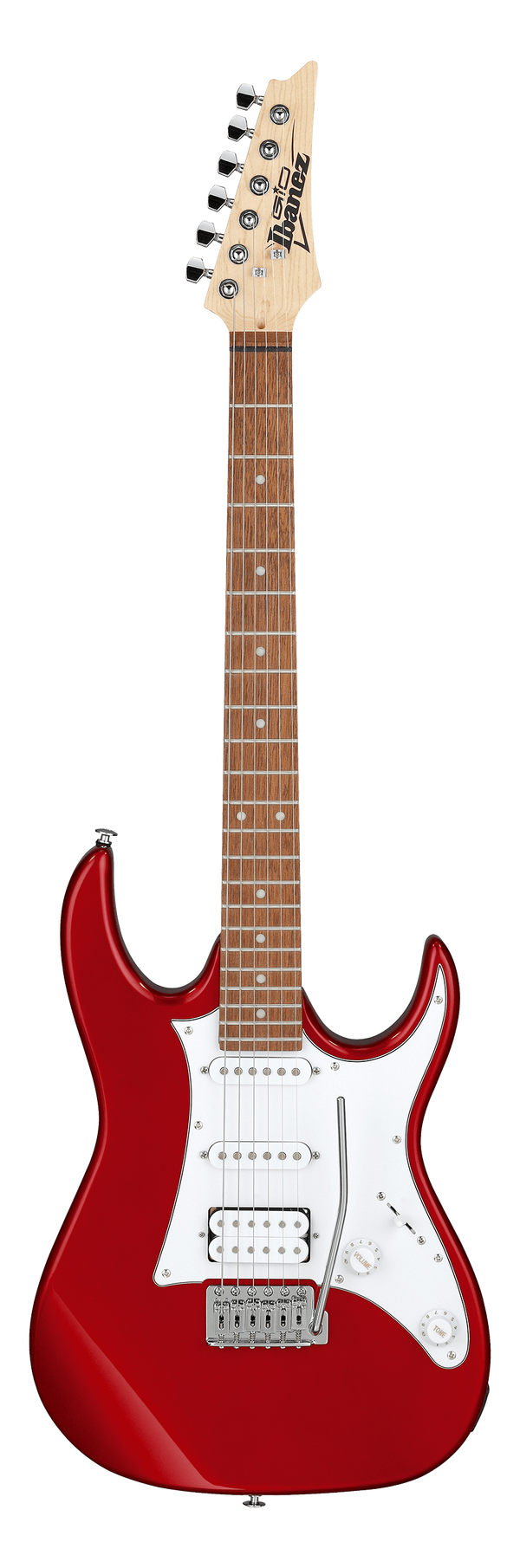

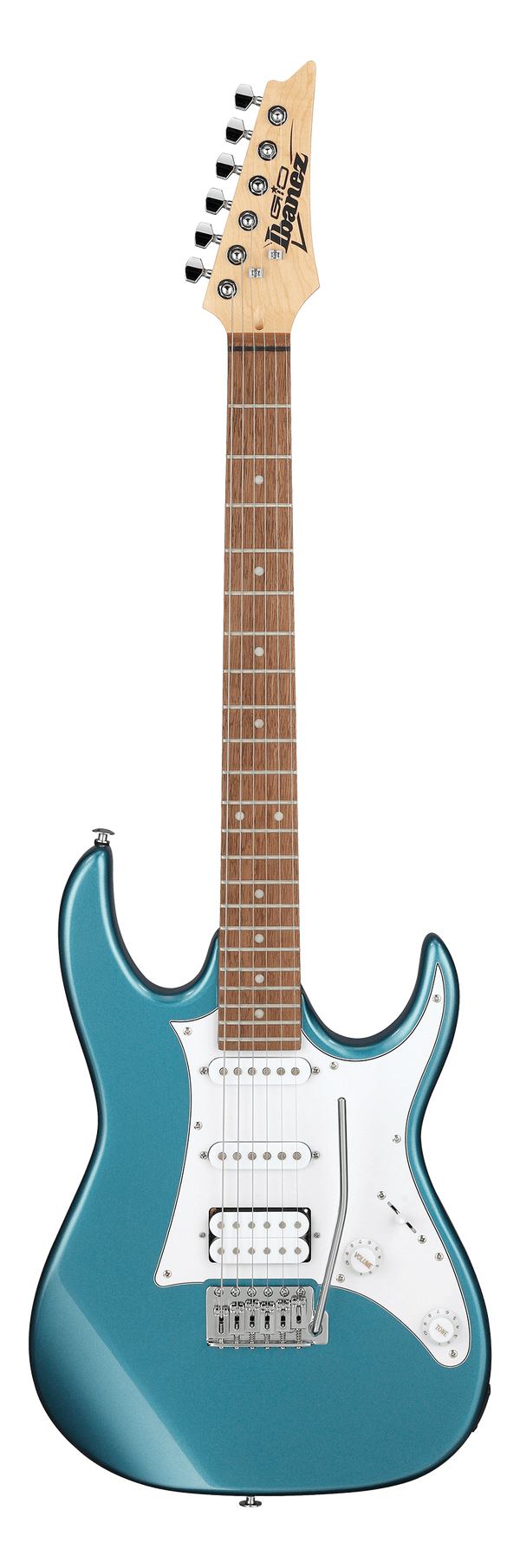

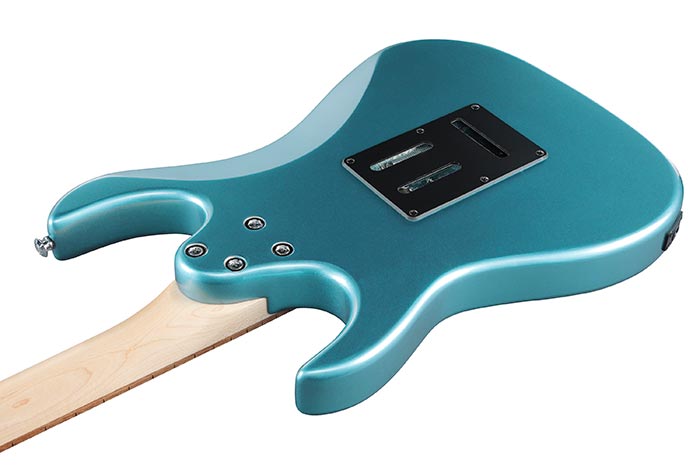

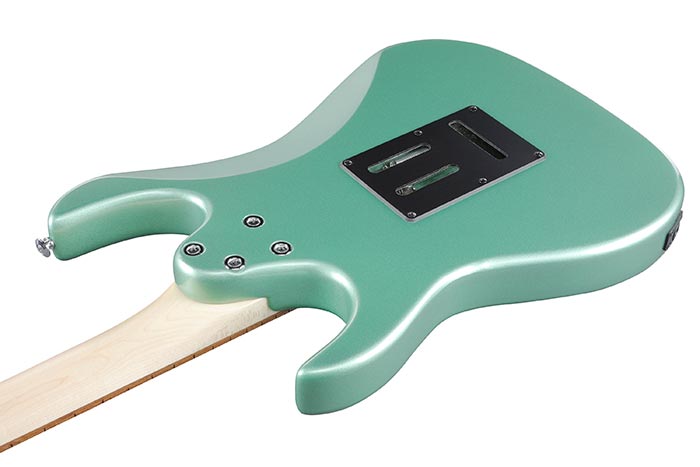

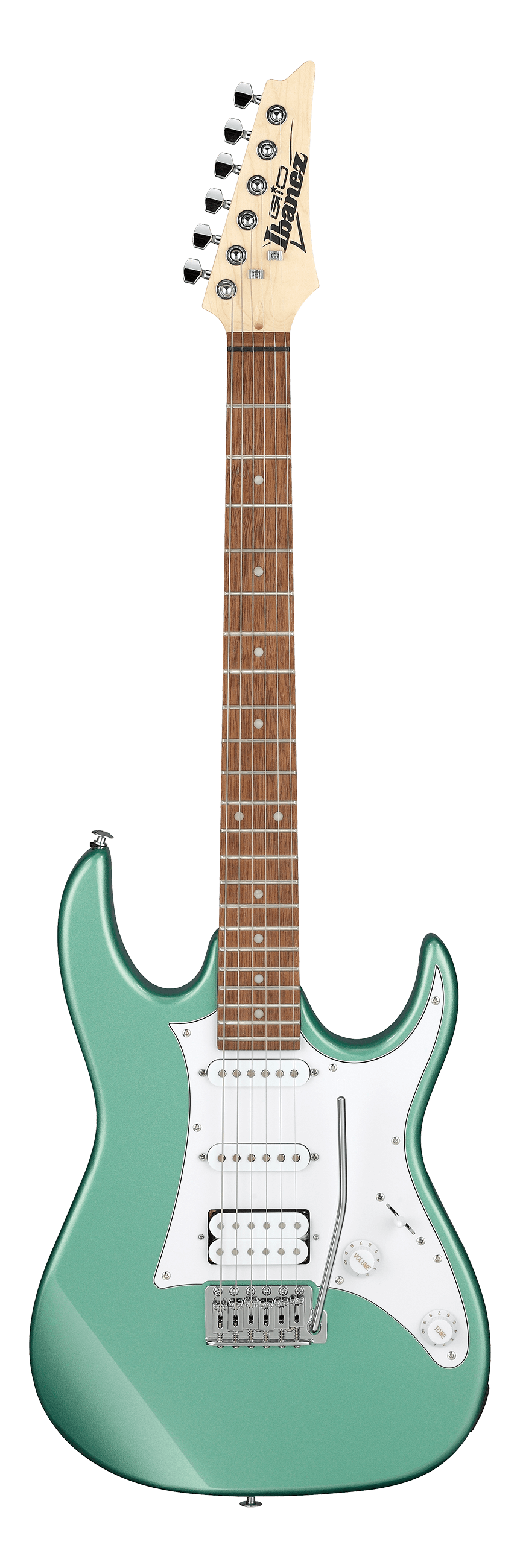

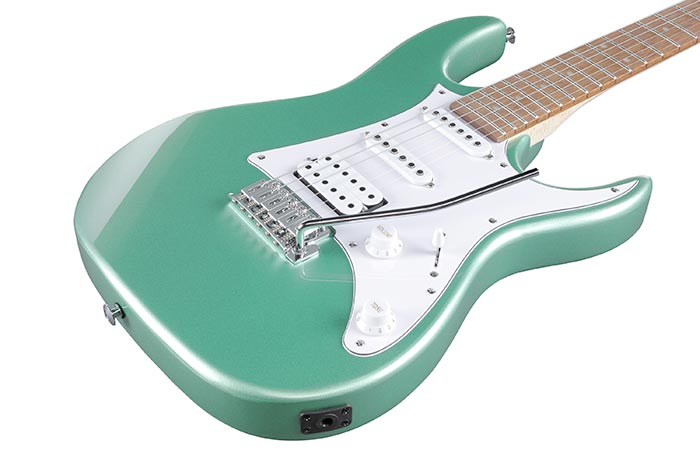

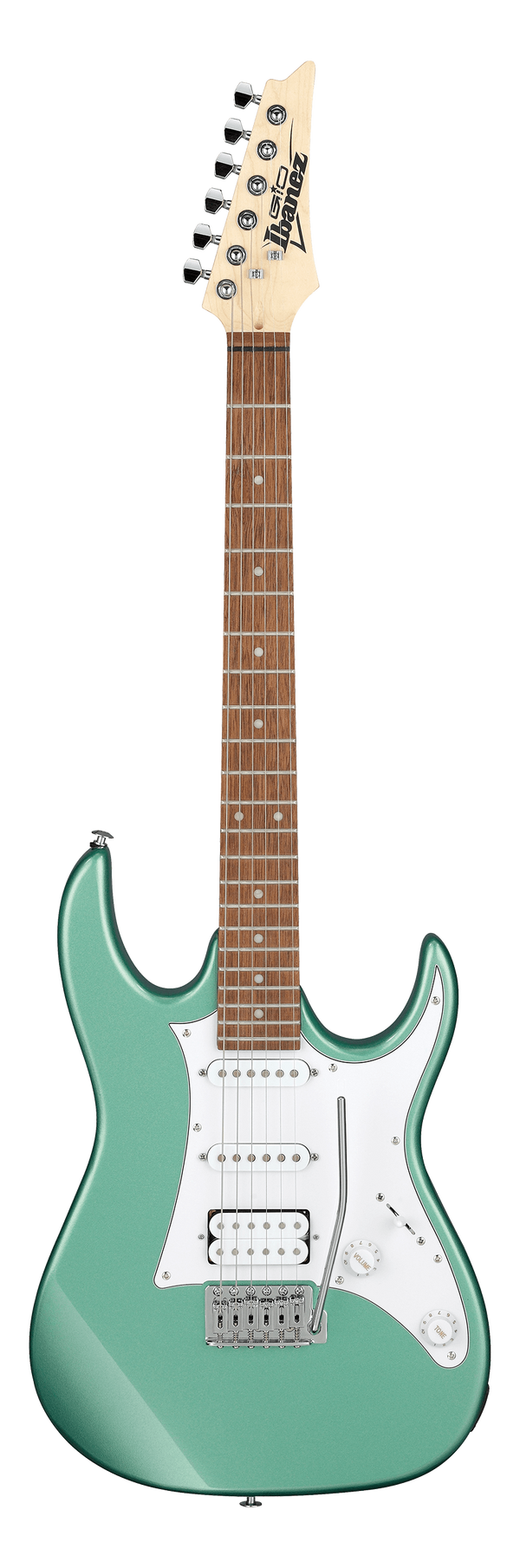

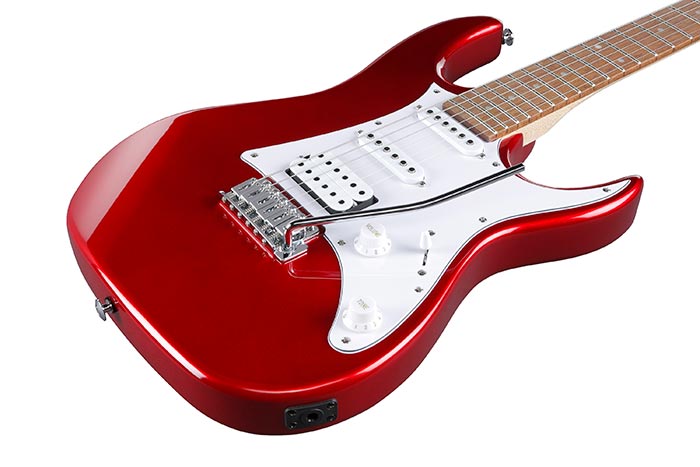

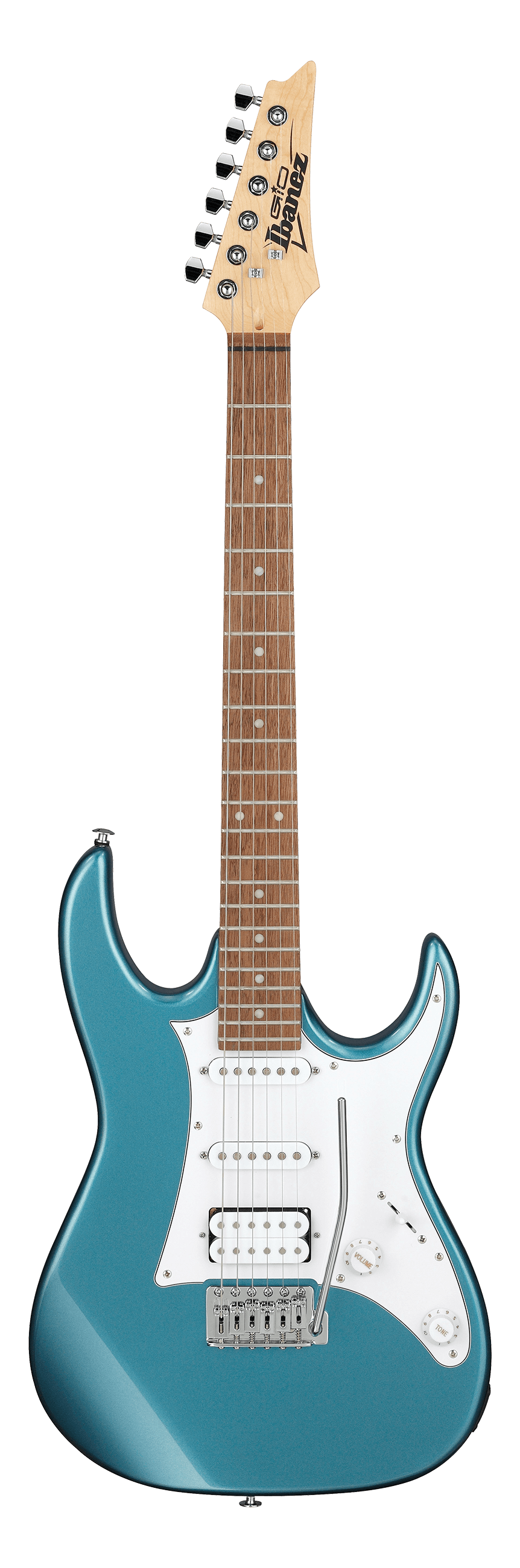

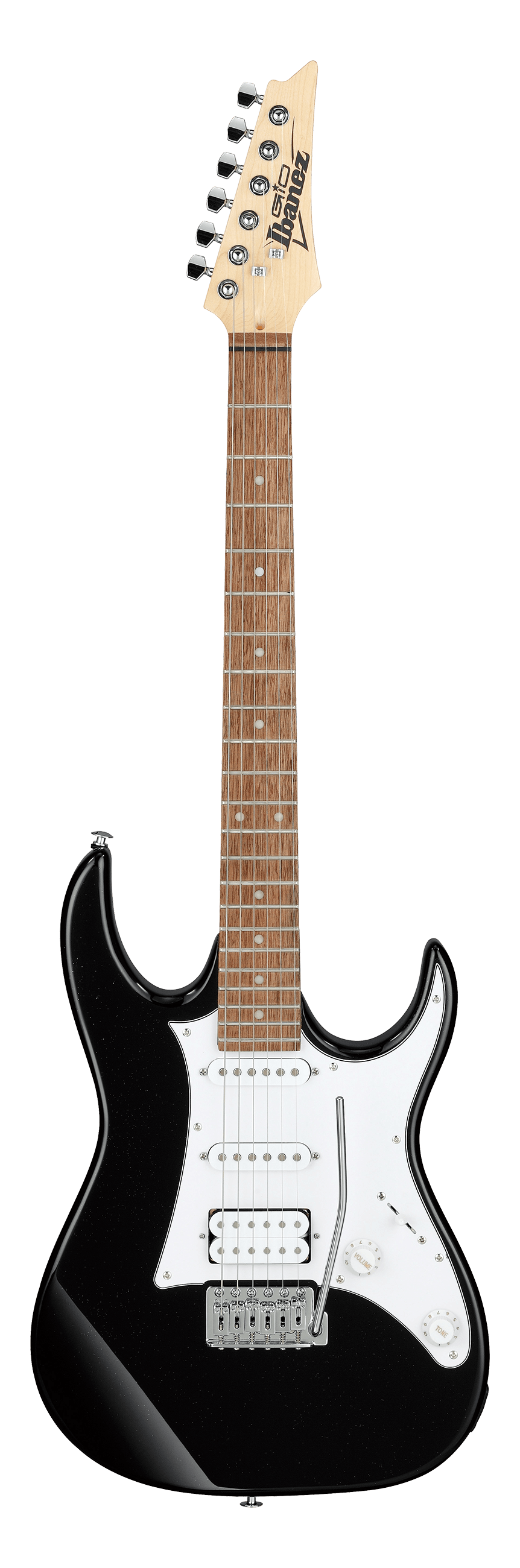

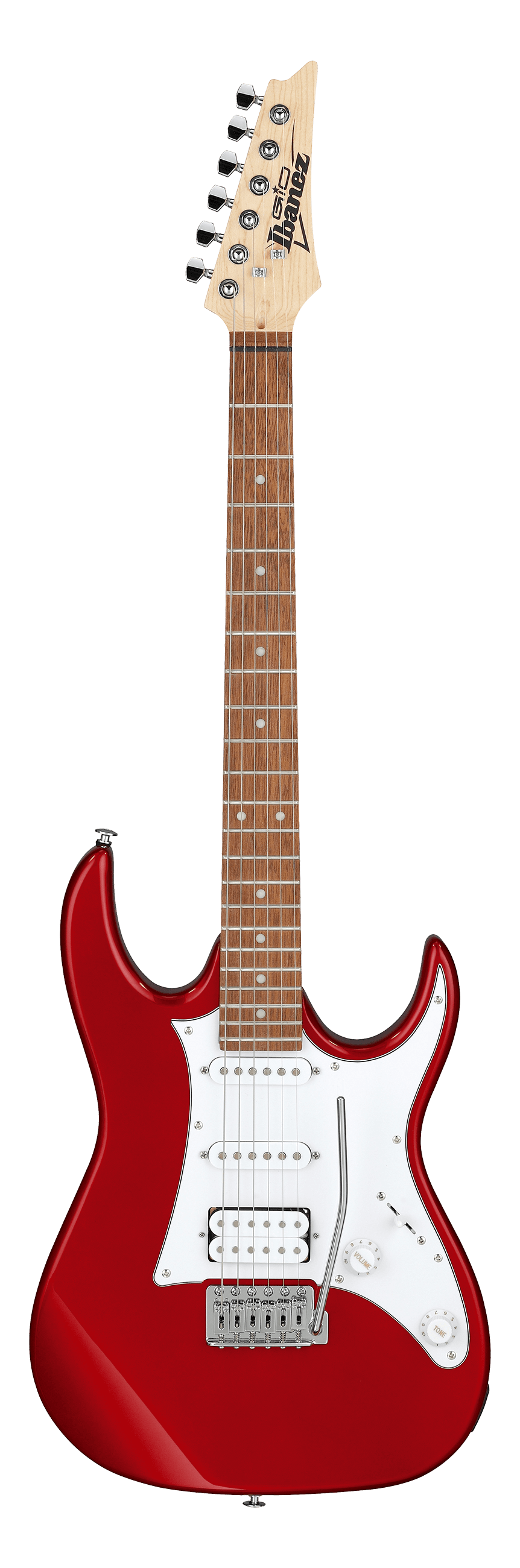

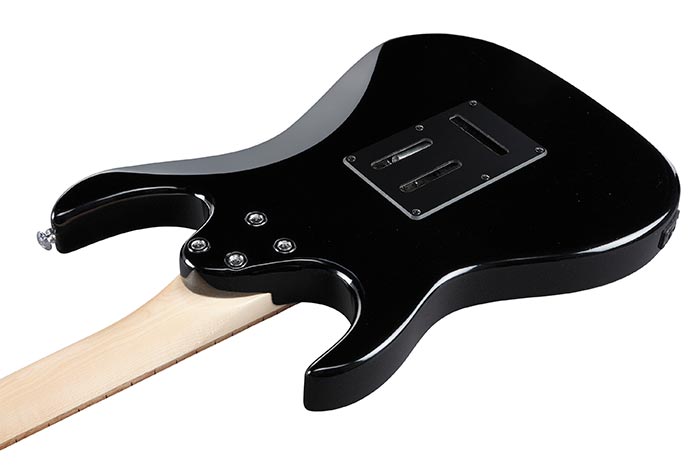

An axe for the masses. The Ibanez GRX40 GIO is a breathtaking guitar which is packed with potential. Containing three Infinity pickups, including a humbucker and two single coils, it delivers a wide range of tones which will give you the power to make any genre sound superb. A GRX maple neck allows for slick playing, offering smoothness and pristine playability. And a T106 tremolo bridge lets you add as much vibrato to your riffs as you can muster. Designed for experienced players and beginners alike, this well-crafted guitar is a shining example of Ibanez's ingenuity and keen eye for detail.
-
SPECS
- neck type
- GRXMaple neck
- top/back/body
- Poplar body
- fretboard
- Jatoba fretboardWhite dot inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- T106 bridge
- string space
- 10.5mm
- neck pickup
- Infinity RS (S) neck pickupPassive/Ceramic
- middle pickup
- Infinity RS (S) middle pickupPassive/Ceramic
- bridge pickup
- Infinity R (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- string gauge
- .009/.011/.016/.024/.032/.042
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
-
-
SWITCHING SYSTEM
DESCRIPTION
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features
Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
Maple neck
The Maple neck provides stability and bright tonal character.
Infinity RS / Infinity R S-S-H pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.
T106 tremolo bridge
The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
